Control Unit
![](https://www.saunacenter.club/wp-content/uploads/2023/08/infrared-heaters-control-unit.jpg)
![](https://www.saunacenter.club/wp-content/uploads/2023/09/health-benefits.jpg)
Advanced conotrol unit
Advanced control unit for private and commercial operation
![](https://www.saunacenter.club/wp-content/uploads/2023/09/electric-savings.jpg)
Remote control
Display panel may be installed remotely at up to 100 m distance
![](https://www.saunacenter.club/wp-content/uploads/2023/09/long-lifespan.jpg)
19 languages
Modern TFT colour display with menu navigation in 19 languages
Premium-class digital sauna control unit for the dry (Finnish) sauna

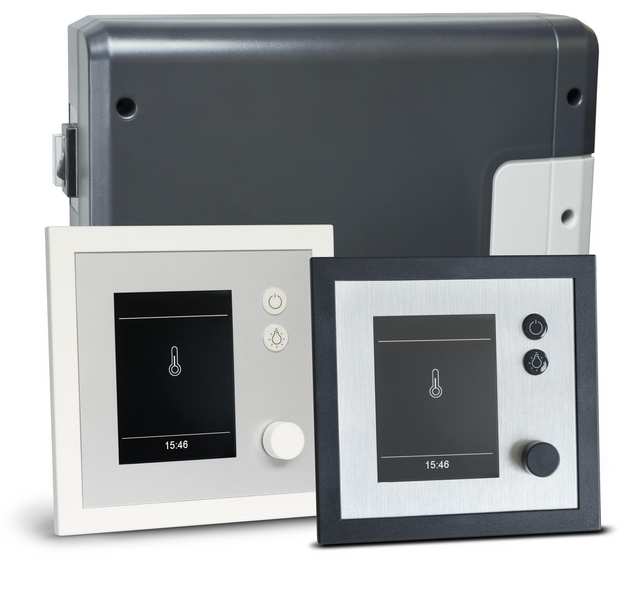

Advanced control unit for private and commercial operation with a remote control panel and a separate relay box. Includes digital sensor with 5 m cable. Innovative operation concept with jog-dial switch, quick access to all functions. Display panel may be installed remotely at up to 100 m distance. Modern TFT colour display with menu navigation in 19 languages.
- Premium class digital control unit for very demanding private and commercial saunas

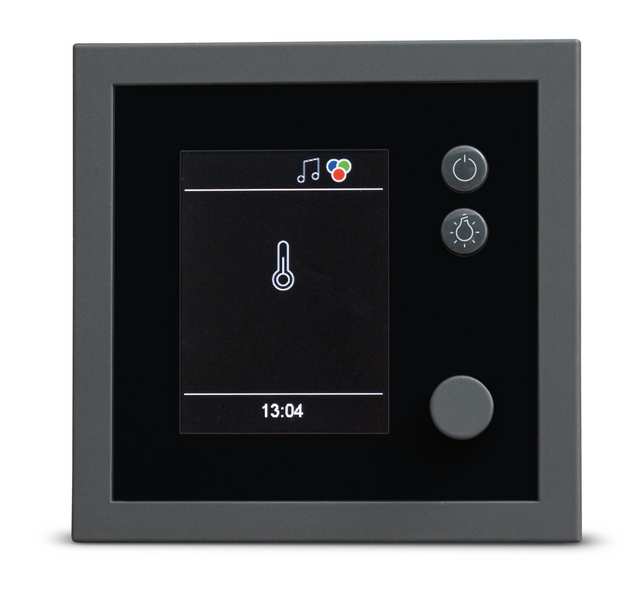

- Compact-size control panel with a TFT colour display with flush-mounted or surface-mounted installation
- Digital temperature control range: 30°C - 115°C

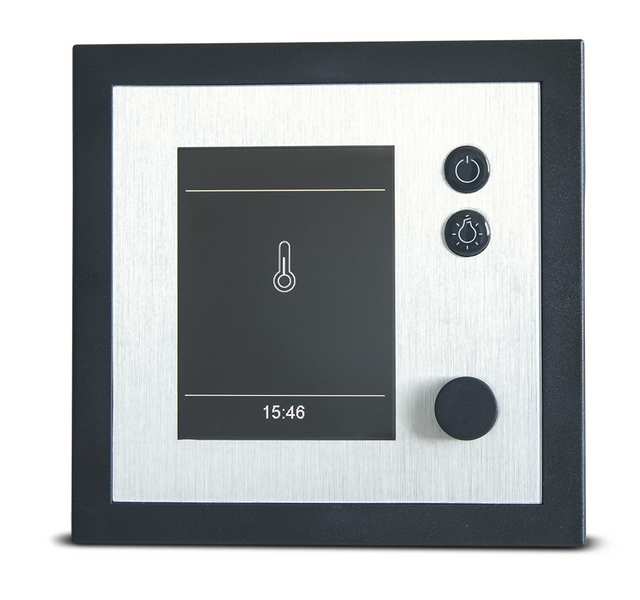

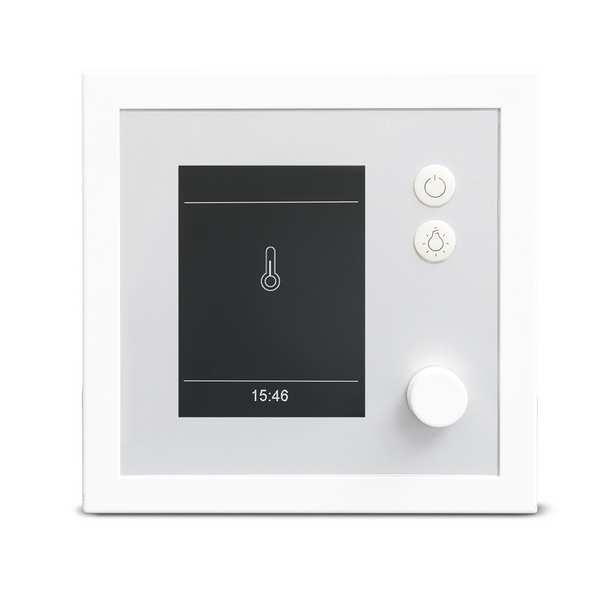

- Display panel available in anthracite, black or white design
- Menu navigation in 19 languages (DE, EN, FR, RU, ES, NL, IT, PL, SLO, FIN, TR, CZ, RO, BG, HU, HR, SK, DK)
- Innovative operation with jog-dial switch - simple, easy, intuitive
- With a separate slim-size display panel (can be installed up to 100 m away from the sauna)
- Dimmable cabin light output 230V, automatic detection of inductive and capacitive loads
- Output for ventilation fan 230V (3 speeds)
- 24 h pre-set timer and extended week timer (4 programs per day possible)
- Heating time limitation 6 h / 12 h / unlimited
- Display panel with screen saver and sleep mode
- Holiday home mode and display lock per pin code
- Pin code protected service level for setup and fine tuning
- Volt-free output
- Digital type sensor for precise and interference-resistant control. Bench sensor optionally available
- Quick check for pre-set and real temperature in the sauna
- Digital micro-chip based temperature sensor with 5 m cable
- Firmware can be updated with a micro SD card (not included)
- Additional control features through optional extensions: coloured light control for LED, music control, remote start and operation
- Switching capacity 9 kW, extendable
- Power supply 400V 3N AC
Installation and user instructions for the Duetto® infrared heater
Click to open!
- Technical data sheetTechnical data sheet
- Installation and operating instructionInstallation and operating instruction
